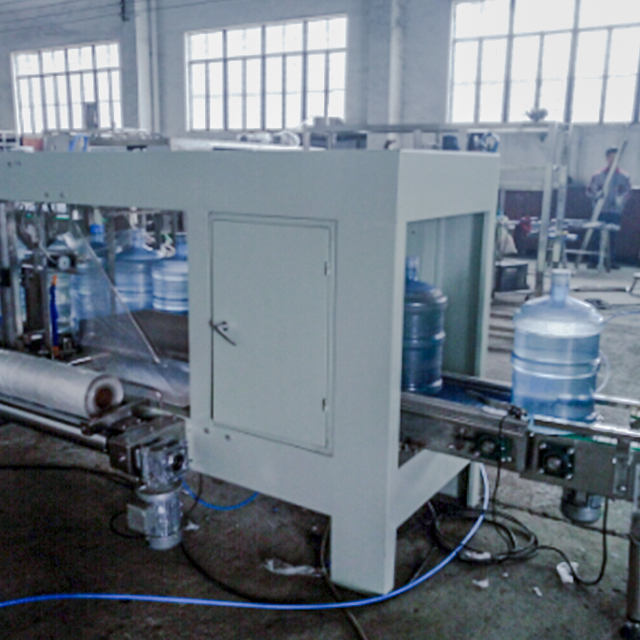

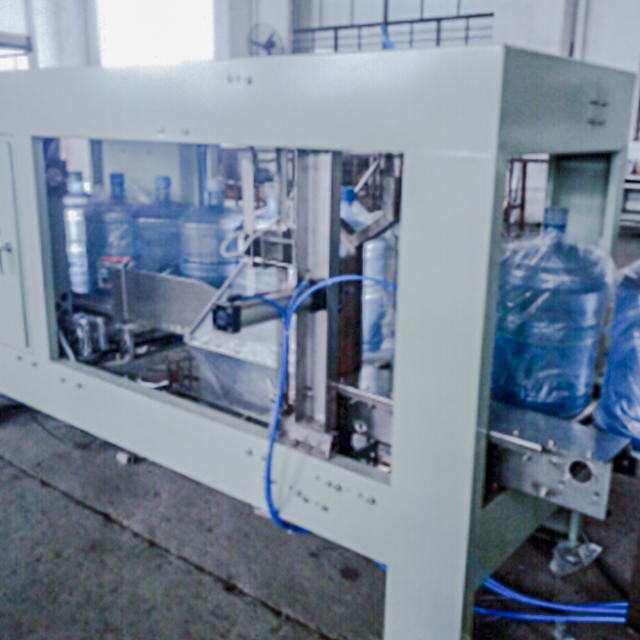

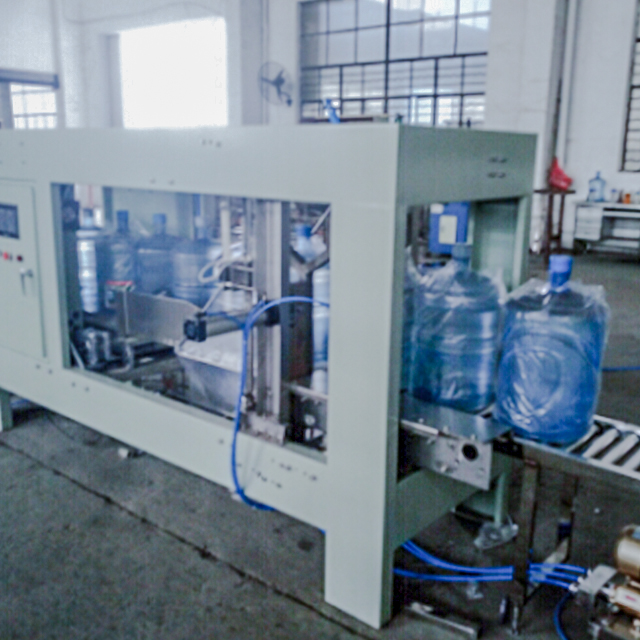

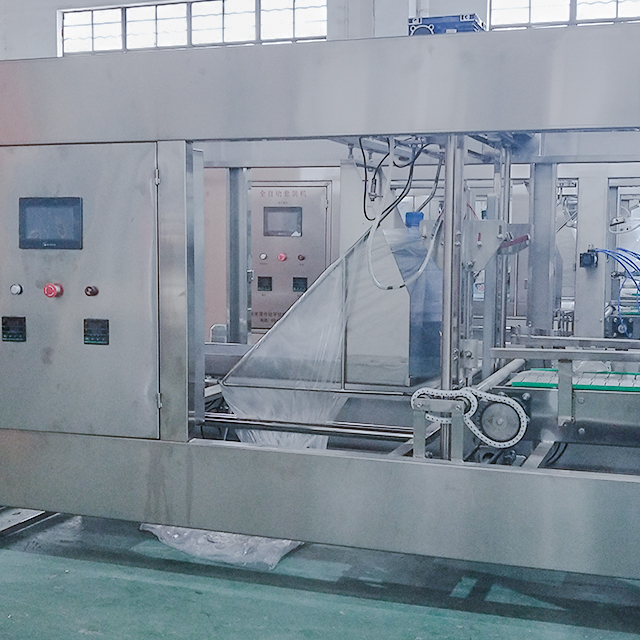

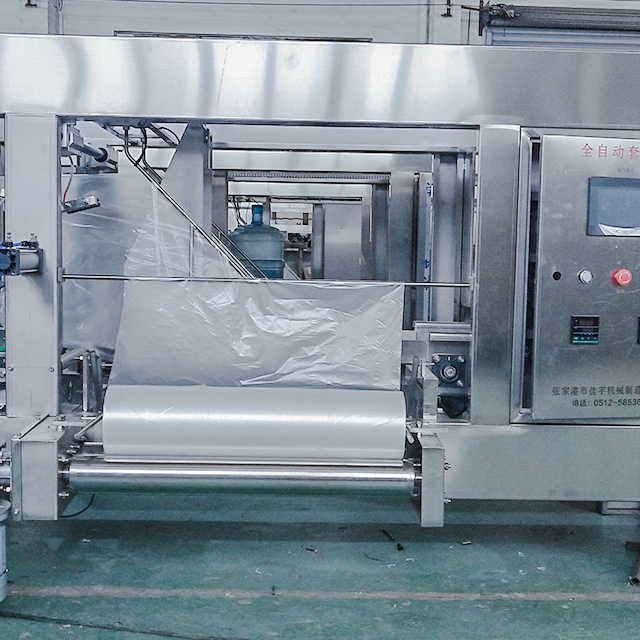

Bagging machine

The fully automatic bagging machine is a device that replaces the manual outer film bagging of five-gallon barrels. The composite roll film is used through a certain mechanism of the machine to surround the bottom and sides of the barrel, and then the heated sealing knife seals the film on both sides of the barrel and the top. The cost of each barrel is no higher than the original cost of a bag, which is about 0.05 yuan per barrel. The main reason is that it greatly saves manpower. It can be used under 1200 barrels/hour. Welcome to buy and install it at your door!

Electrical configuration

PLC: Mitsubishi Japan

Contactor: Schneider

Photoelectric switch: Autonics

Cylinder: Argon Dek

Motor: Zhejiang Huangyan

Overall dimensions: 2600*1100*1400

Production: 1200 barrels/hour

Plate: 2mm thick  material 304

Instant heating: 1.5kw

Motor transmission: 1.5kw
